Rim Model: MS30C30

Material: Toray T700 / T800 / T1000 Carbon Fiber

Brake Type: Rim brake / Disc brake optional

Tubular System: Clincher / Tubeless compatible

Application: Road bike

Finish Pattern: UD / 3K / 12K / Weave / Marble, etc.

Surface: Matte / Glossy optional

Spoke Holes: 18 / 20 / 24H (customizable)

Rim Size: 700C

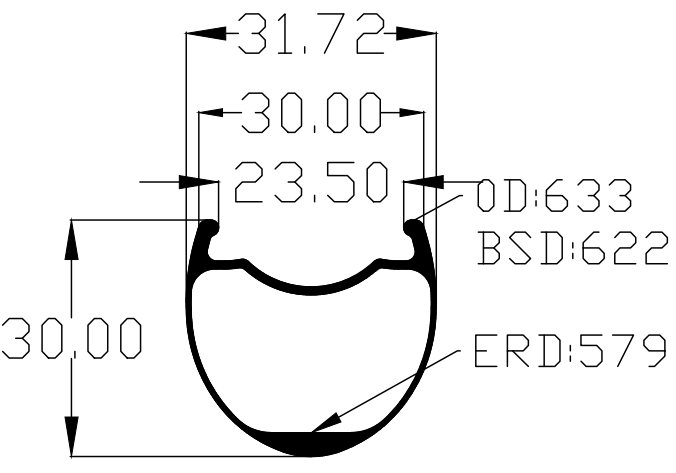

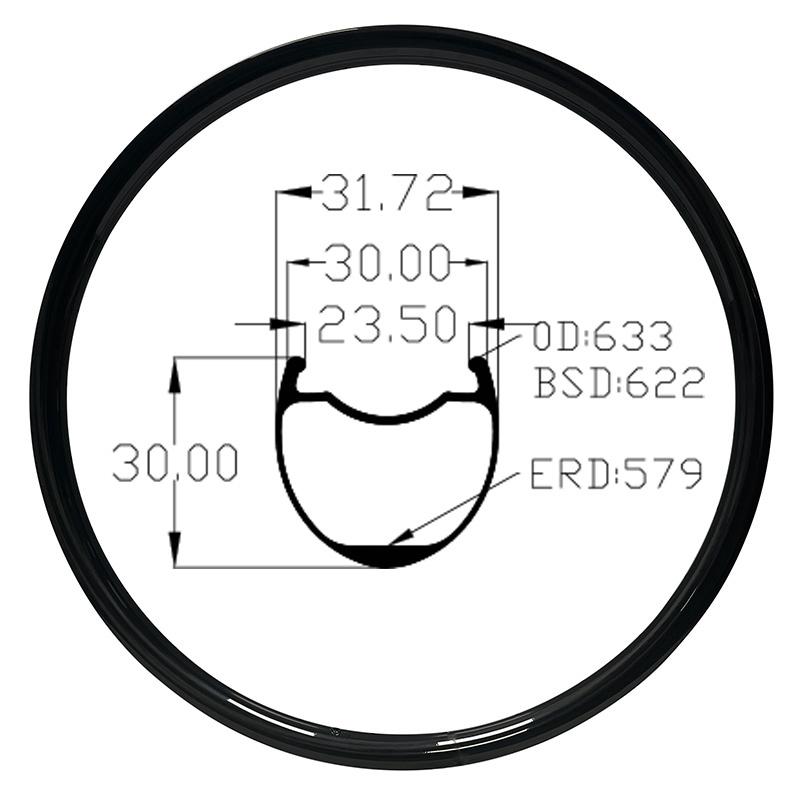

Rim Height: 30mm

Internal / External Width: 23.5mm / 30mm

ERD: 579mm

Standard version: 430±15g

Light version: 380±15g

Super light version: 330±15g

Ultra light version: 295±15g

Asymmetric Rim: No (0mm offset)

Max Load: 135kg / 176lbs

Spoke Hole Angle: ±8° (customizable)

Max Spoke Tension: >300kgf

Max Recommended Tire Pressure: 120psi

Recommended Tire Size: 28–35C

Product Description: 700C carbon fiber road bike rim with 30mm depth, 23.5mm internal width and 30mm external width, designed for road bike upgrades.
