[caption id="attachment_681" align="alignnone" width="700"]

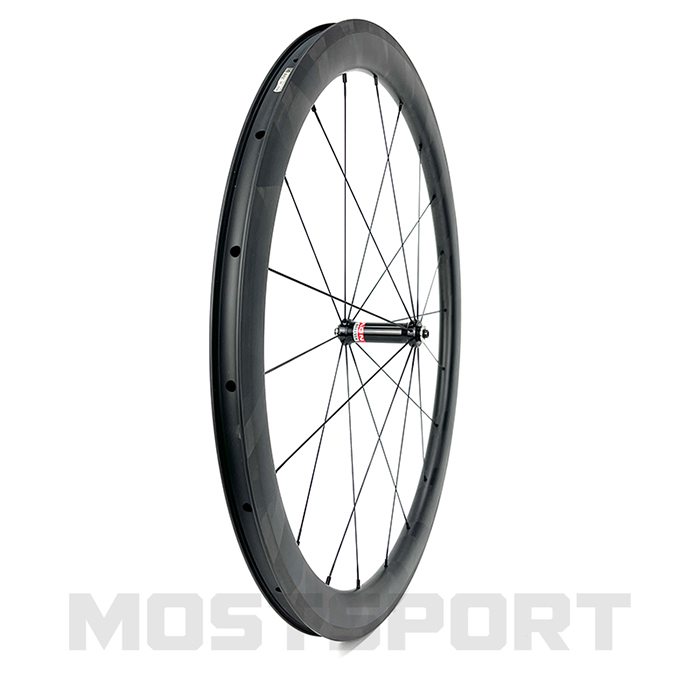

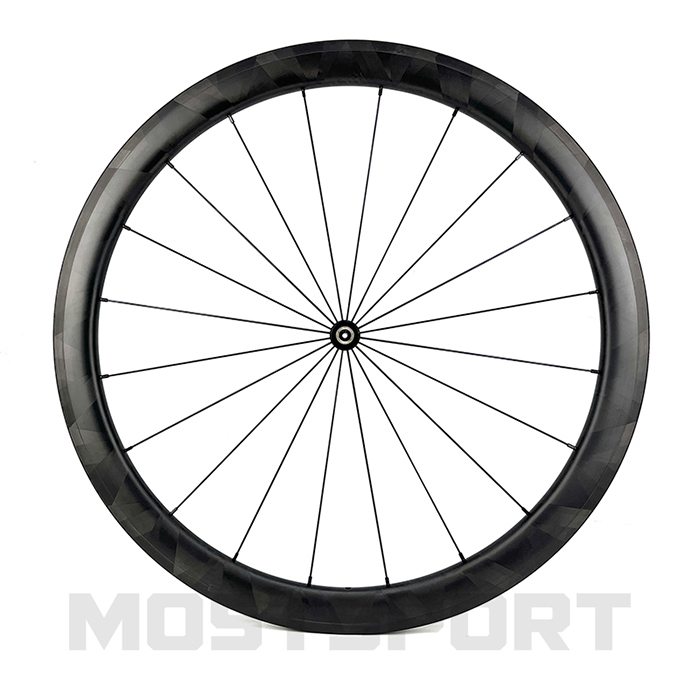

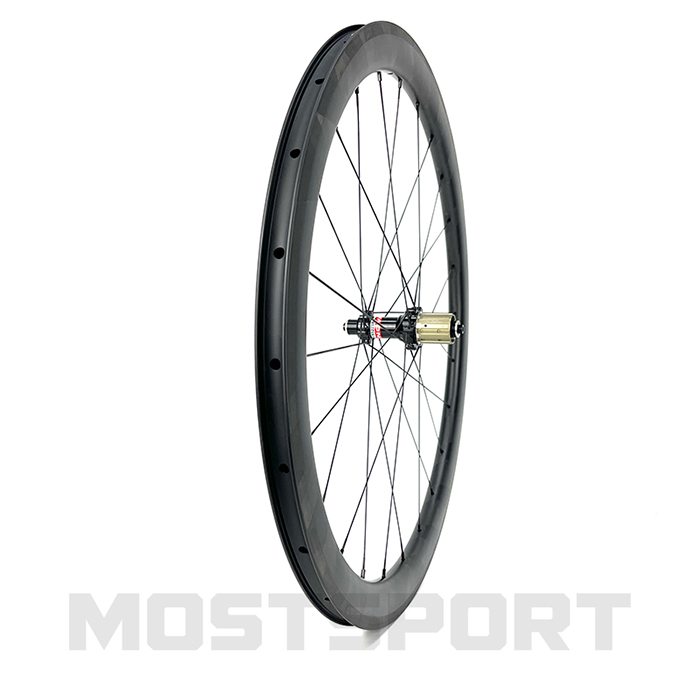

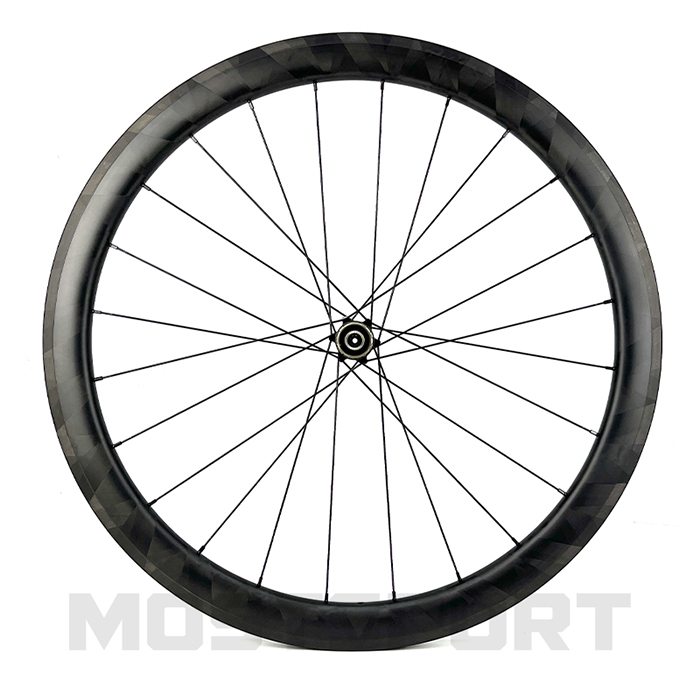

700C 45mm Super light carbon wheels (1)[/caption]
[caption id="attachment_682" align="alignnone" width="700"]
700C 45mm Super light carbon wheels (1)[/caption]
[caption id="attachment_683" align="alignnone" width="700"]
700C 45mm Super light carbon wheels (1)[/caption]
[caption id="attachment_684" align="alignnone" width="700"]
700C 45mm Super light carbon wheels (1)[/caption]
[caption id="attachment_686" align="alignnone" width="700"]

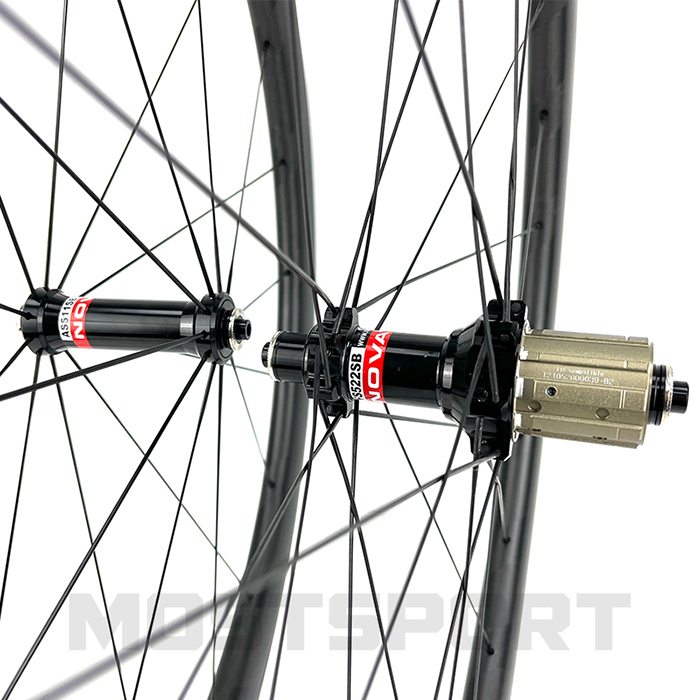

Novatec AS511SB-FS522SB HUBS[/caption]700C Road 45mm Rim Brake Super Light Carbon Wheels Butterfly Pattern
Novatec AS511SB-FS522SB Hubs Wing20 Spoke,CN Alloy Nipple ,1330g/pair
Toray T700 Carbon Fiber Materials Carbon Rims,Premium Layer-up System,Strict Testing Standards And Quality Inspection System
100% Handbuilt Carbon Wheels ,Three Years Warranty Offered For Carbon Rims
All Decal Options Available Including Full Custom
Rims Specifications
Rim Model: MSR45C-02
Material: Toray T700 Carbon Fiber
Size: 700C (ETRTO 622mm)
Weave : UD/3K/12K (Customizable)
Finishing : Matt/Glossy (Customizable)
Intended Use: Road/CX/Gravel
Rim Type :Clincher
Tubeless Capable: Yes
Inner/Outer Width: 19mm/26mm
Depth: 45mm
Profile: Symmetric (0mm)
Max Cyclist Weight : 130kg/ 287lbs
Spoke Hole Angle: ±8° (Customizable)
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 110psi/ 7.58bar
Recommended Tire Width: 21C~38C
Hub/Spokes/Nipples Specifications
Hub Model: Novatec AS511SB-FS522SB(Customizable)
Brake Track: High TG Butterfly Pattern
Hub Front Axle Size: QR/100mm
Hub Rear Axle Size: QR/130mm
Hub Driver Body: Shimano/Sram/Campy 10-11S,Sram XDR 12S
Hole: 20-24H
Spokes: Pillar Wing20 Bladed Straight-Pull (Customizable)
Nipples: CN 14mm Alloy (Customizable)
Wheels Weight: 1330±30g
Introduction: 700C 45mm Road Rim Brake Super Light Carbon Wheels Butterfly Pattern Novatec AS511SB-FS522SB Hubs Wing20 Spoke
